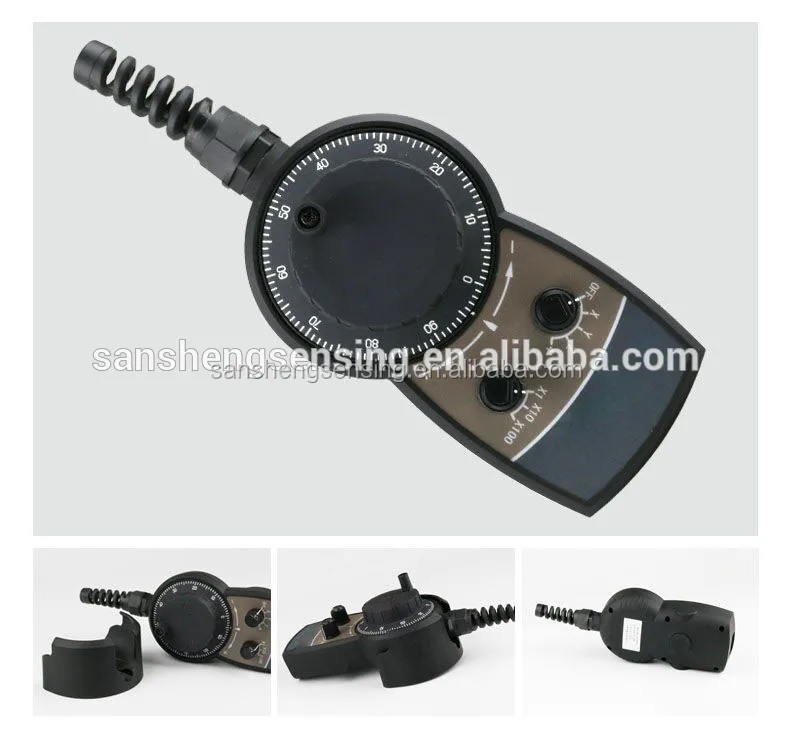

6 Axis CNC MPG rotary encoder r 5-24V 5V 12V 24V MPG
Manual pulse generators(handwheel/mpg) are typically rotating knobs that generate electrical pulses. They are normally associated with computer numerically controlled (CNC) machinery or other devices involving positioning. When the pulse generator sends an electrical pulse to an equipment controller, the controller then moves a piece of equipment a predetermined distance with every pulse.
Optical encoders use a light source and a photo detector array to read the optical pattern of a plastic or glass disc and translate the pattern into a position data code.
| SPECIFICATION | Output Pulse | 100P/R | 25P/R | |
| Output Model | Voltage | Line Driver | ||
| Supply Voltage | DC5V-15V/10-30V | DC5V-0.25V | ||
| Current Requirement | ¡Ü60mA | ¡Ü150mA | ||
| Signal Level | High | ¡ÝVcc-1V | ¡Ý2.5V | |
| Low | ¡Ü0.5V | ¡Ü0.5V | ||
| Rise/Fall time | ¡Ü1us | ¡Ü0.1us | ||
| Output Phase | A,B,-A,-B | |||
| Frequency Response | ¡Ü30kHz | |||
| Risolation resistance | ¡Ý20M¦¸ | |||
| Normal rotational speed | ¡Ü200r/min | |||
| Slew speed | 600r/min | |||
| Operating temperature | -10-+60¡ãC | |||
| Storage Temperature | -20-+70¡ãC | |||
| Dimension | 140mm¡Á72mm ¡Á 27mm | |||
| Switch for resolution | ¡Á1,¡Á10,¡Á100 | |||
| Switch for Axes | O/X/Y/Z/2/3/4/6 | |||
JILIN SANSHENG Technology CO., LTD. Is a high-tech enterprises, focus on R&D, manufacturing and sales for industrial encoder. The company strictly implement ISO 9001:2000 quality management system and CE certification, is leading technology, most complete varieties, most cost-efficient domestic encoder manufacturers.
As an important device of control system ,SANSHENG has more than 20 series and more than 100 varieties high quality products: incremental photoelectric encoder, magnetoelectric incremental encoder, photoelectric absolute encoder, magnetoelectric absolute encoder etc. Products are widely used in motor, CNC machine, packaging and printing, textiles, wind power, aerospace, turntable, servo control, divided circle, automated assembly line, turret tools and some industrial automation control field. Constant innovation and research are the most important magic weapon to success. SANSHENG technology team had visited to Germany, the United States, South Korea and other countries for learning and communication many times, introducing advanced encoder technology, promoting the product technology development, rapid achieve technology internationalization and product branding.
With advanced production equipment and exquisite production environment, SANSHENG had achieved the high quality production. Two newly developed automated assembly lines will better ensure product quality, improve production capacity. The technology had filled up the blank of domestic encoder industry, which will be put into use at the end of 2018.
Provide reliable products and excellent service for customers is SANSHENG's ultimate goal. Through six years unremitting efforts, the sale network had been all over the world, with many distributor and agent for domestic and overseas. Products are exported to more than 30 countries and regions with widely praised. Fanuc, Siemens, shenyang siasun and other international well-known companies are our partners.
We believe that through continuous innovation, upgrade management, new market positioning, and excellent service, SANSHENG will be more and more stronger.
1.18 Month warranty:Free replacement of defective prodcuts within 18 months.
2.Questions about encoder will be answered within 24 hours.
3.OEM solution will be offered to meet all your requirement.
Q1:What's the MOQ?
A: MOQ: 1 pc
Q2:How to place the order?
A: Please contact with our sales to get the detail datasheet and confirm the part number of the encoder you need, then you can place the order online or underline.
Q3:What's the payment term?
A: We can accept T/T, Western Union and PayPal etc.
Q4:What's the lead time?
A: Standard encoder within 7 working days. Customized encoder need 15-20 working days.
