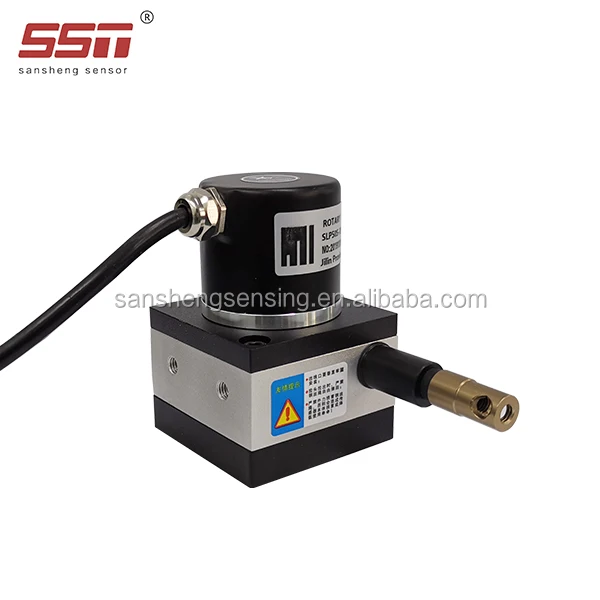

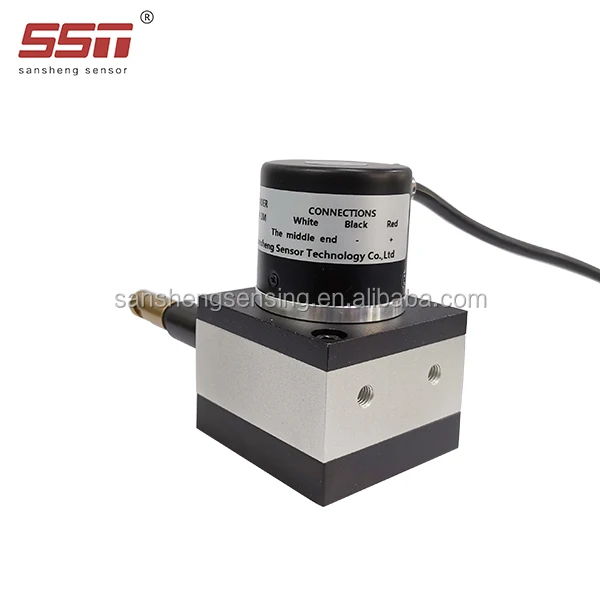

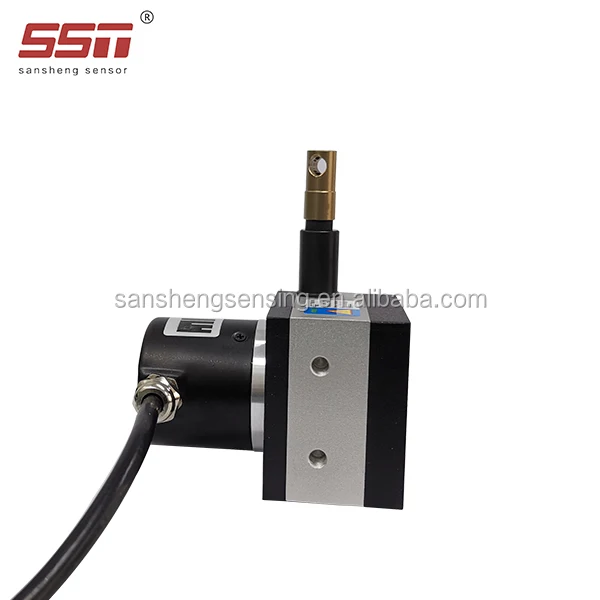

Linear displacement sensor Analog Output potentiometer SLP50S
Draw-wire displacement encoders measure linear movements using a highly flexible steel cable.
The cable drum is attached to a sensor element which provides a proportional output signal.
Measurements are performed with high accuracy and high dynamic response. The use of high quality components guarantees a long life cycle and high operational reliability.
| Sensor Type | String Potentiometer |
|
wire rope |
0.6mm high flexible imported plastic coated wire rope |
| output signal | 0-5K, 0-10K,0-5V,0-10V,4-20mA |
| measuring range | 0-1000mm |
| linear accuracy | 0.1%-0.05%FS |
| outlet tension | 4N |
| operation temperatur | -50¡ãC¡ª¡ª110¡ãC |
| vibration resistance | 10Hz-1500Hz 10G |
| cable length | 1 meter ( standard), optional |
| housing material | aluminium alloy, xidation surface treating,wear and corrosion prevention |
| power | <1W |
| operating voltage |
10-30V ( built-in) 12V,24V, 28V ( outlay) |
| repeatability accuracy | 0.01% |
| weight (kg) | 0.45 |
| life | >10 million times |
| protection class | IP54 |
| switching circuit | built-in, outlay with isolation |
Note:
Wrong wiring may damage the sensor
Make sure wire in the power off state
Do not let go after wire is pulled out, otherwise the sensor could be easily damaged
Do not exceed the total length of the wire
Please ensure the cleanness of the equipment and wire line to prolong the service life
Avoid external force
Company information
JILIN SANSHENG Technology CO., LTD. Is a high-tech enterprises, focus on R&D, manufacturing and sales for industrial encoder. The company strictly implement ISO 9001:2000 quality management system and CE certification, is leading technology, most complete varieties, most cost-efficient domestic encoder manufacturers.
As an important device of control system ,SANSHENG has more than 20 series and more than 100 varieties high quality products: incremental photoelectric encoder, magnetoelectric incremental encoder, photoelectric absolute encoder, magnetoelectric absolute encoder etc. Products are widely used in motor, CNC machine, packaging and printing, textiles, wind power, aerospace, turntable, servo control, divided circle, automated assembly line, turret tools and some industrial automation control field. Constant innovation and research are the most important magic weapon to success. SANSHENG technology team had visited to Germany, the United States, South Korea and other countries for learning and communication many times, introducing advanced encoder technology, promoting the product technology development, rapid achieve technology internationalization and product branding.
With advanced production equipment and exquisite production environment, SANSHENG had achieved the high quality production. Two newly developed automated assembly lines will better ensure product quality, improve production capacity. The technology had filled up the blank of domestic encoder industry, which will be put into use at the end of 2018.
Provide reliable products and excellent service for customers is SANSHENG's ultimate goal. Through six years unremitting efforts, the sale network had been all over the world, with many distributor and agent for domestic and overseas. Products are exported to more than 30 countries and regions with widely praised. Fanuc, Siemens, shenyang siasun and other international well-known companies are our partners.
We believe that through continuous innovation, upgrade management, new market positioning, and excellent service, SANSHENG will be more and more stronger.
1.18 Month warranty:Free replacement of defective prodcuts within 18 months.
2.Questions about encoder will be answered within 24 hours.
3.OEM solution will be offered to meet all your requirement.
