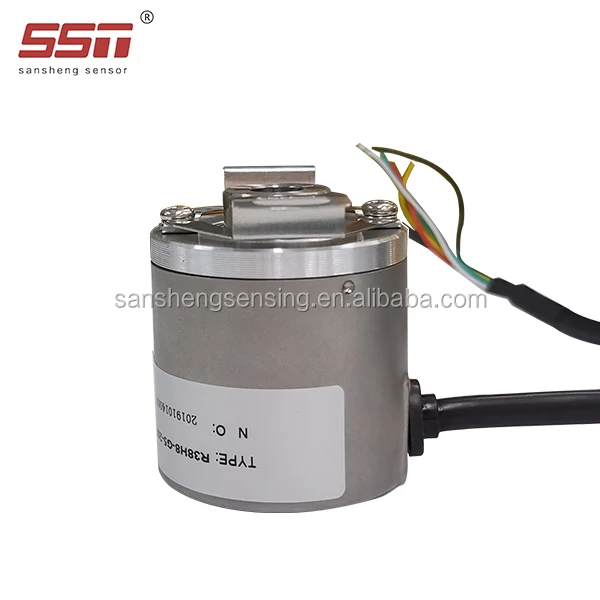

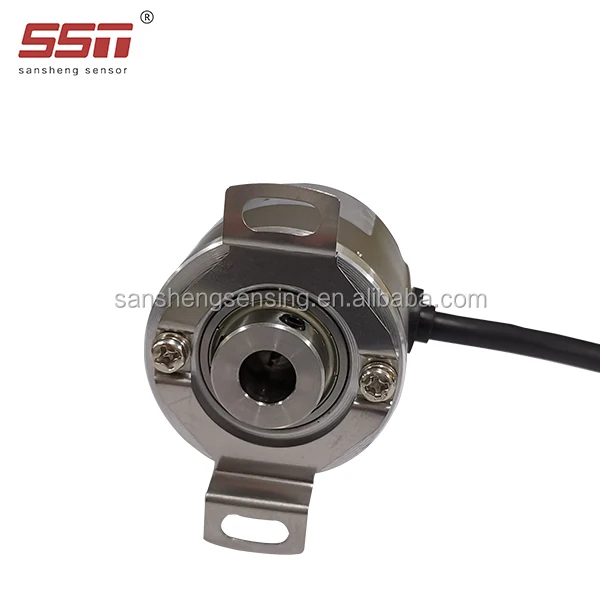

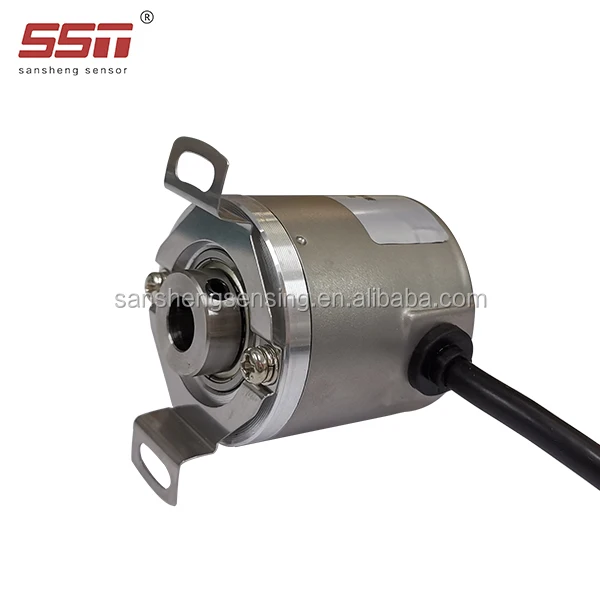

Motor speed encoder 1024 ppr rotary encoder end hollow shaft 8mm
1. Encoder SA38H Series are widely applied in industrial control .
2. Compact design,high precison.
3. Resoltions up to 5000.
4. Stainless steel shaft ensures high stability and protection ability.
5. Suit more application enviroments.
6. Low price and high quality
7. Through Hollow shaft rotary optical encoder
8. Certification: CE & ISO9001 & RoHS.
9. Feature: sturdy and durable, easy to install, optional various output mode, etc.
10. Manufacturer: quality control, better delivery control and better cost control.
| SPECIFICATION | MECHANICAL SPECIFICATIONS | |
| External Diameter | 38mm | |
| End Hollow Shaft Diameter | 6/8mm | |
| Slew Speed | 6000r/min | |
| Shaft Load | ¡Ü10N | |
| Operating Temperature | -20 ¡ãC(-40 ¡ãC)- +85¡ãC | |
| Protection Class | IP50 | |
| Termination | Side Entry Cable/ Rear Entry Cable | |
| ELECTRICAL SPECIFICATIONS | ||
| Supply Voltage | DC5V/8V-26V/12V-30V/12V | |
| Output Model | Voltage/Push-pull/Open Collector/Line Driver | |
| Frequency Response | 0-100kHz | |
| Current Requirement | ¡Ü60mA | |
| Output Pulse No. | 10-5000 | |
| Index Length | 1T | |
| Output Phase | A,B,Z/A,-A,B,-B,Z,-Z | |
JILIN SANSHENG Technology CO., LTD. Is a high-tech enterprises, focus on R&D, manufacturing and sales for industrial encoder. The company strictly implement ISO 9001:2000 quality management system and CE certification, is leading technology, most complete varieties, most cost-efficient domestic encoder manufacturers.
As an important device of control system ,SANSHENG has more than 20 series and more than 100 varieties high quality products: incremental photoelectric encoder, magnetoelectric incremental encoder, photoelectric absolute encoder, magnetoelectric absolute encoder etc. Products are widely used in motor, CNC machine, packaging and printing, textiles, wind power, aerospace, turntable, servo control, divided circle, automated assembly line, turret tools and some industrial automation control field. Constant innovation and research are the most important magic weapon to success. SANSHENG technology team had visited to Germany, the United States, South Korea and other countries for learning and communication many times, introducing advanced encoder technology, promoting the product technology development, rapid achieve technology internationalization and product branding.
With advanced production equipment and exquisite production environment, SANSHENG had achieved the high quality production. Two newly developed automated assembly lines will better ensure product quality, improve production capacity. The technology had filled up the blank of domestic encoder industry, which will be put into use at the end of 2018.
Provide reliable products and excellent service for customers is SANSHENG's ultimate goal. Through six years unremitting efforts, the sale network had been all over the world, with many distributor and agent for domestic and overseas. Products are exported to more than 30 countries and regions with widely praised. Fanuc, Siemens, shenyang siasun and other international well-known companies are our partners.
1.18 Month warranty:Free replacement of defective prodcuts within 18 months.
2.Questions about encoder will be answered within 24 hours.
3.OEM solution will be offered to meet all your requirement.
Q1:What's the MOQ?
A: MOQ: 1 pc
Q2:How to place the order?
A: Please contact with our sales to get the detail datasheet and confirm the part number of the encoder you need, then you can place the order online or underline.
Q3:What's the payment term?
A: We can accept T/T, Western Union and PayPal etc.
Q4:What's the lead time?
A: Standard encoder within 7 working days. Customized encoder need 15-20 working days.
