Cheap elevator encoder 5000ppr opticasl rotary encoder for cnc controller tools
* Good reliability, long life, anti-jamming performance.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Bearing load heavy, anti-oil and water.
* Applicability to a wide variety of mechanical and industrial control.
1. Certification: CE & ISO9001 & RoHS.
2.Feature: sturdy and durable, easy to install, optional various output mode, etc.
3.Manufacturer: quality control, better delivery control and better cost control.
|

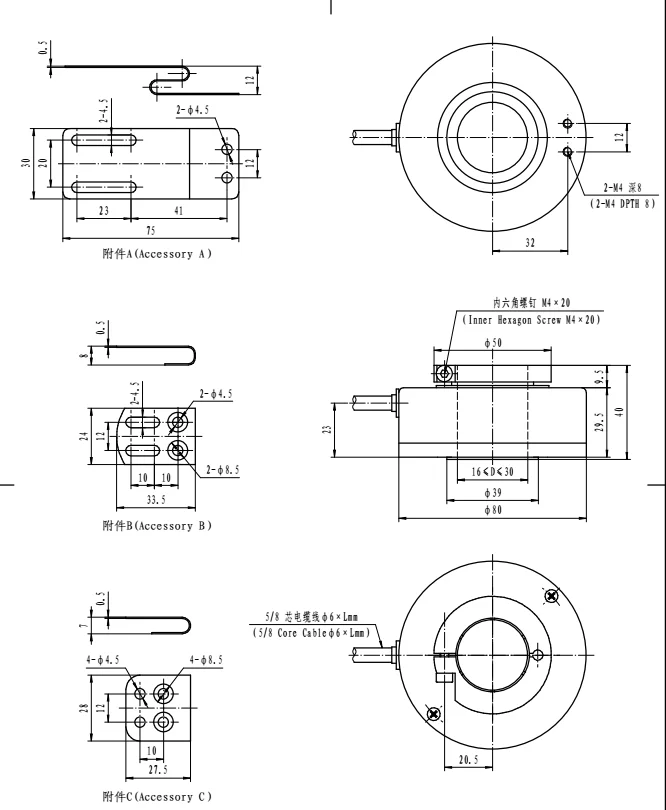

External Diameter |
80mm |
|
Shaft Diameter |
18-30mm |
|
Slew Speed |
6000r/min |
|
Shaft Load |
¡Ü10N |
|
Operating Temperature |
-20 ¡ãC(-40 ¡ãC)- +85¡ãC |
|
Protection Class |
IP54 |
|
Termination |
Side Entry Cable |
|
Supply Voltage |
DC5V/8V-26V/12V-30V/12V |
|
Output Model |
Voltage/Push-pull/Open collector/Line driver |
|
Frequency Response |
0-100kHz |
|
Current Requirement |
¡Ü60mA |
|
Output Pulse No. |
30-5400 |
|
Index Length |
1T |
|
Output Phase |
A,B,Z/A,-A,B,-B,Z,-Z |
1.18 Month warranty:Free replacement of defective prodcuts within 18 months.
2.Questions about encoder will be answered within 24 hours.
3.OEM solution will be offered to meet all your requirement.
